Infrared Cameras by Optris

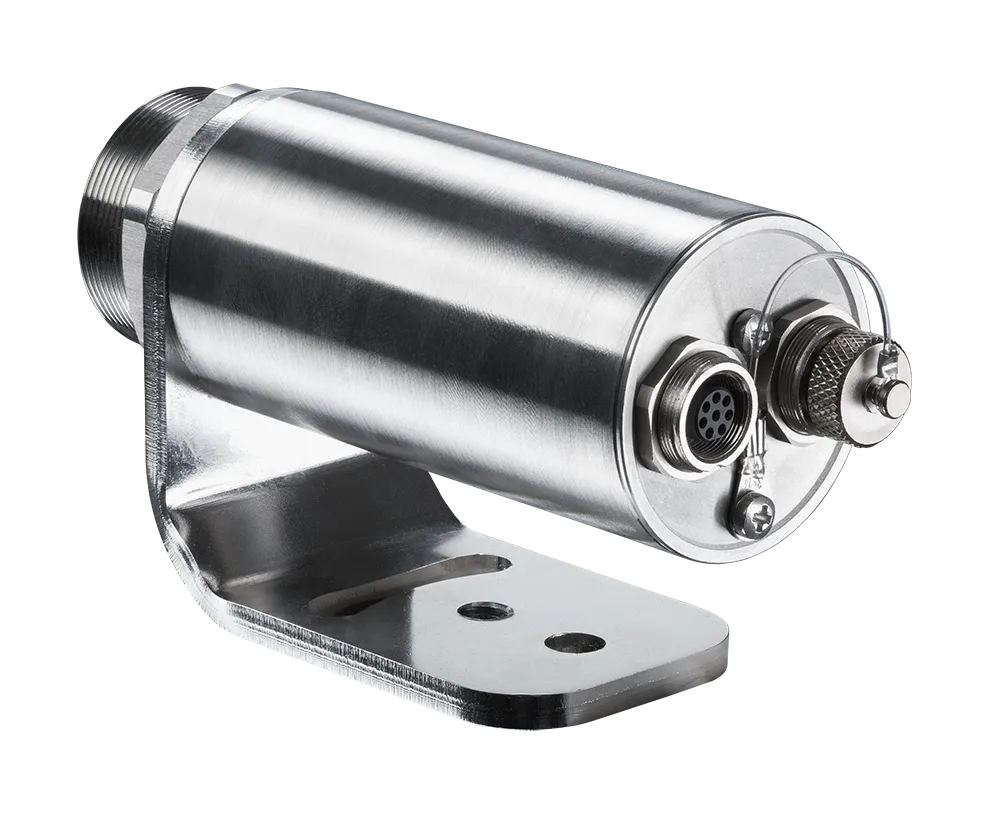

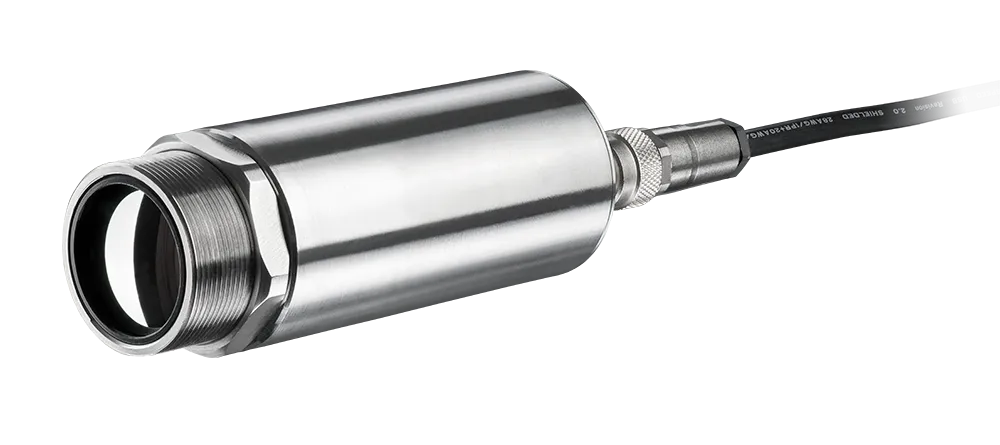

Optris Xi 400 LT
382 × 288
Resolution (px)
80 Hz
Frame Rate
-20 to 900 / 1500°C
Temp Range
IP67
Stainless Steel
Applications
Fire Detection

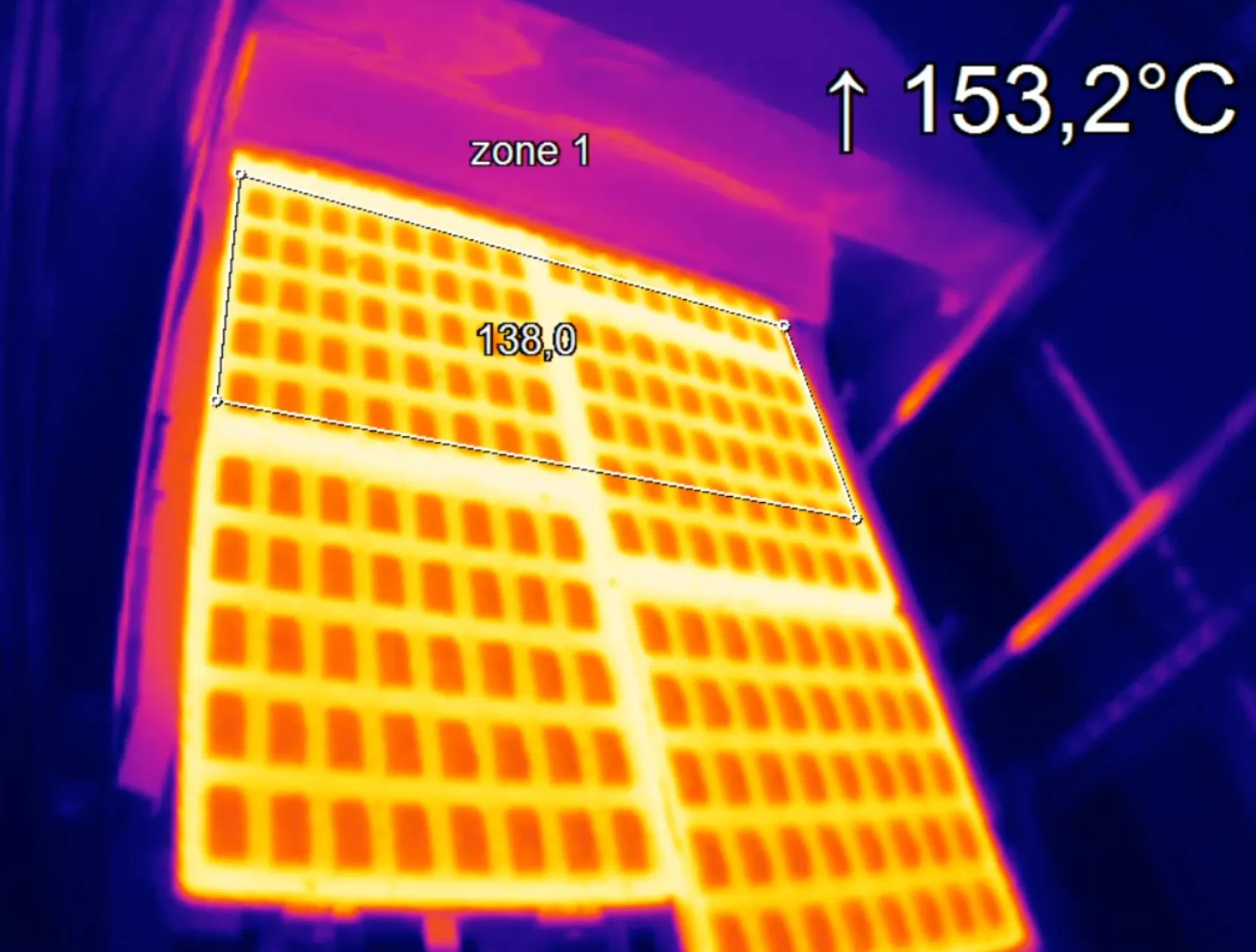

Food & Beverage
Conveyor Monitoring
Electronics
Configuration Options
Lens Options
Ships with one lens of your choice — every FOV is the same price, no upcharge.
29° × 22°
12.7 mm — standard FOV, general monitoring
Default
53° × 38°
7.7 mm — wide FOV, close-range / large targets
No upcharge
80° × 54°
5.7 mm — ultra-wide, room-scale fire detection
No upcharge
18° × 14°
20 mm — telephoto, long-range / small targets
No upcharge
Temperature Range
-20 to 900°C
Standard range for most applications
Included
-20 to 1500°C
High-temp for metals, glass, ceramics
+$1,285
Full Specifications
DetectorUncooled FPA (LWIR 8–14 µm)
Resolution382 × 288 px
Frame Rate80 Hz
Temperature Range-20 to 1500°C (selectable)
Accuracy±2°C or ±2%
Thermal Sensitivity (NETD)50 mK
HousingStainless steel, IP67
DimensionsØ 36 × 100 mm (M30×1)
Weight220 g
PowerUSB (PoE optional)
InterfaceUSB 2.0
Softwareoptris PIX Connect (free)

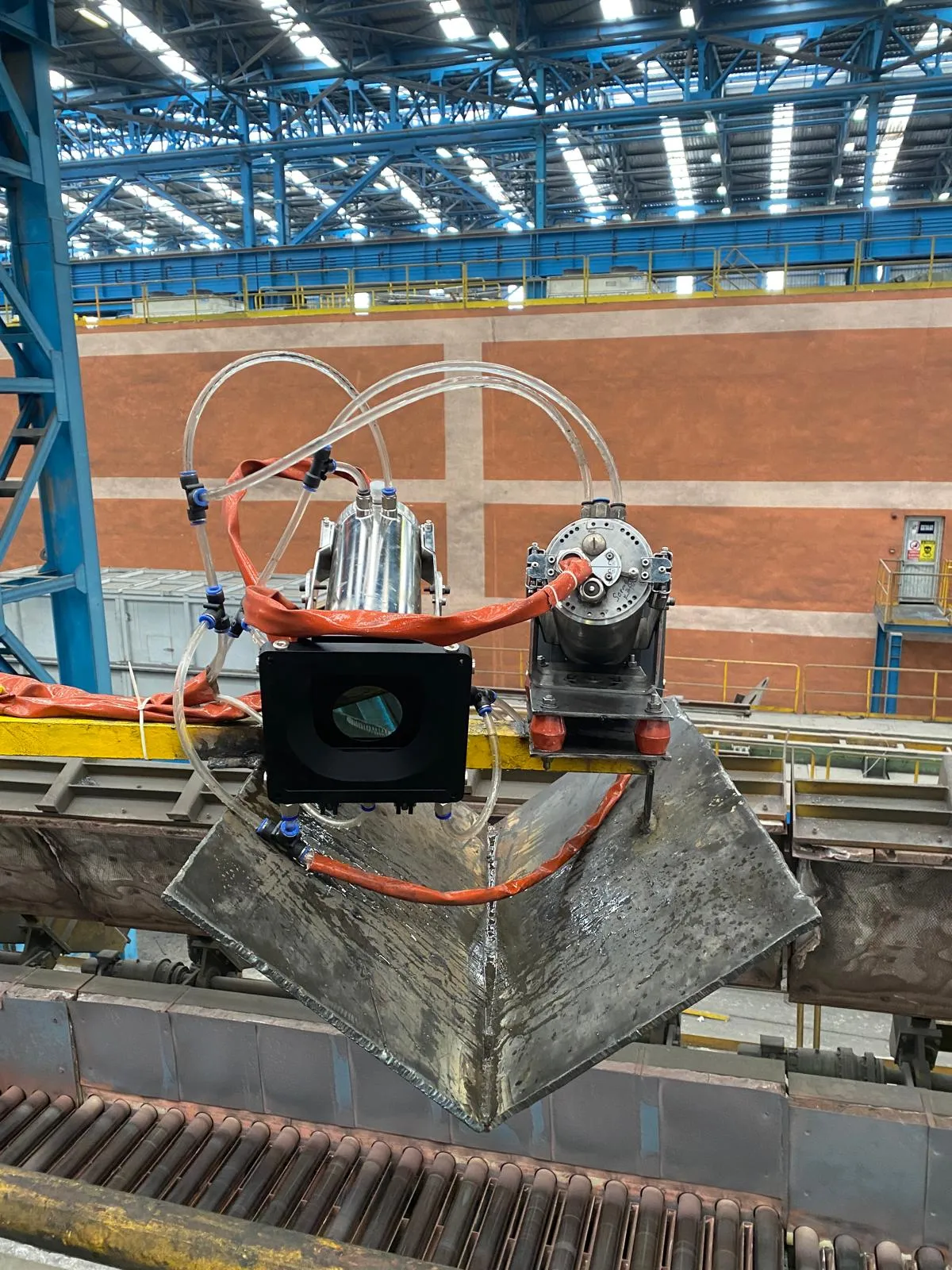

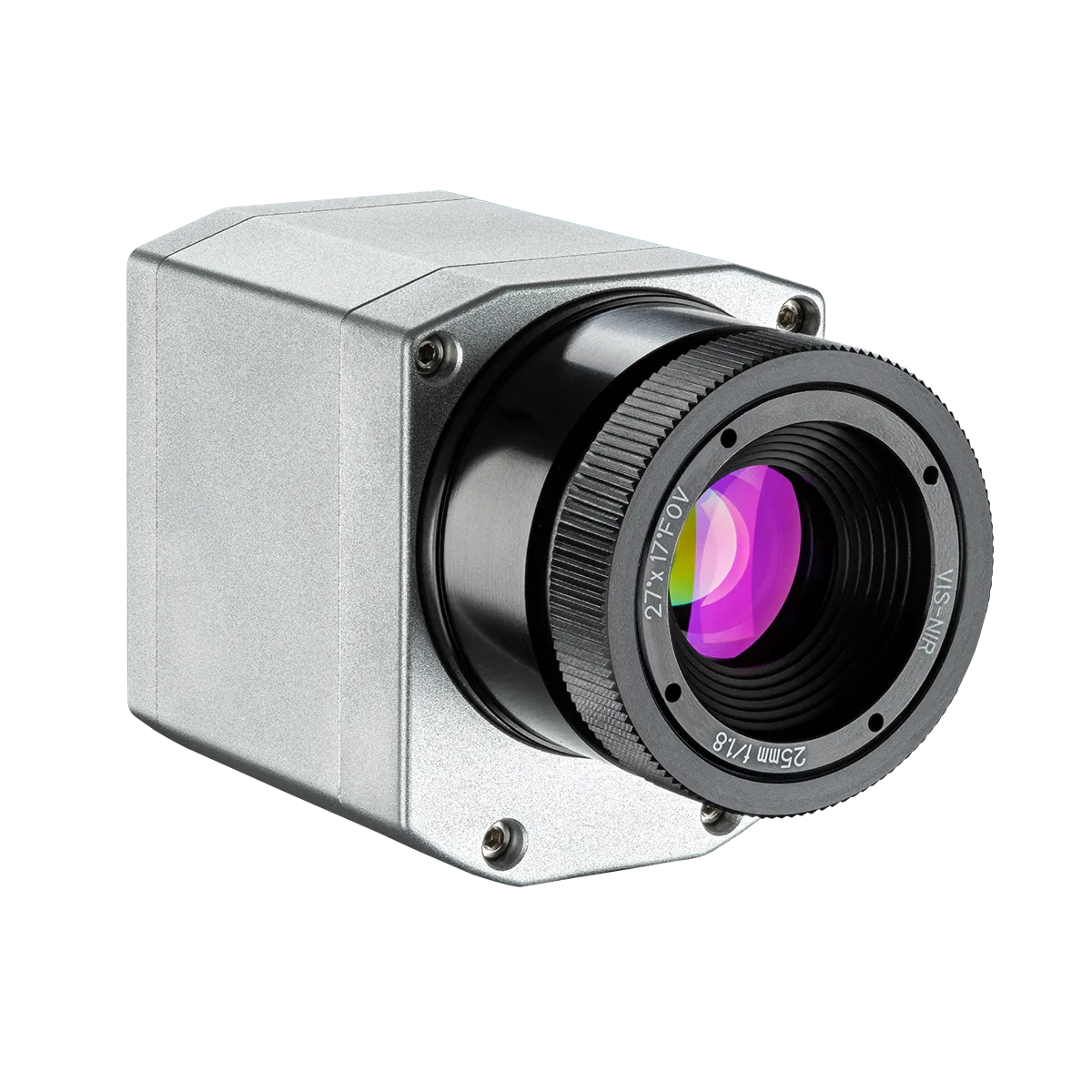

Optris Pi 1M
764 × 480
Resolution (px)
1 kHz
Max Frame Rate
450–1800°C
Temp Range
0.85–1.1 µm
Short-Wave IR
Applications
Metal Casting
Laser Processing
Steel & Rolling
Glass & Ceramics
Configuration Options
Lens Options
Ships with one lens of your choice — every FOV is the same price, no upcharge.
41° × 25°
16 mm — standard wide FOV, general metal monitoring
Default
27° × 17°
25 mm — medium FOV, furnace & mill
No upcharge
13° × 8°
50 mm — telephoto, long-range targets
No upcharge
9° × 6°
75 mm — long telephoto, smallest spot size
No upcharge
Temperature Range
450–1800°C
Full range for metals & high-temp processes
Standard
Full Specifications
DetectorInGaAs FPA (0.85–1.1 µm)
Resolution764 × 480 px
Frame Rate32 Hz (full) / 1000 Hz (sub-window)
Temperature Range450–1800°C
Accuracy±2°C or ±2%
NETD< 1 K @ 700°C
HousingAluminum, IP65 (with housing)
Dimensions46 × 56 × 90 mm (head)
Weight250 g (head)
PowerUSB (PoE optional)
InterfaceUSB 2.0
Softwareoptris PIX Connect (free)
Compare
| Specification | Xi 400 LT | Pi 1M |
|---|---|---|
| Best For | Automation, fire detection, QC | Metals, laser, glass |
| Spectral Range | LWIR 8–14 µm | SWIR 0.85–1.1 µm |
| Resolution | 382 × 288 px | 764 × 480 px |
| Frame Rate | 80 Hz | 32 Hz / 1 kHz |
| Temperature | -20 to 1500°C | 450–1800°C |
| Accuracy | ±2°C or ±2% | ±2°C or ±2% |
| Protection | IP67 (stainless) | IP65 (aluminum) |
| Weight | 320 g | 250 g (head) |
| Starting Price | $2,995 | $4,750 |
Choose Xi 400 LT if you need:
- General-purpose thermal monitoring
- Fire detection & prevention
- Food, packaging, or conveyor inspection
- Sub-zero temperature measurement
Choose Pi 1M if you need:
- Hot metal measurement (casting, forging, rolling)
- Laser process monitoring
- Measurement through flame, plasma, or steam
- High-speed capture (>80 Hz)
