3D Laser Scanners by Micro-Epsilon
scanCONTROL 8x00
High-performance laser profile scanners — more precise, more compact, more intelligent.

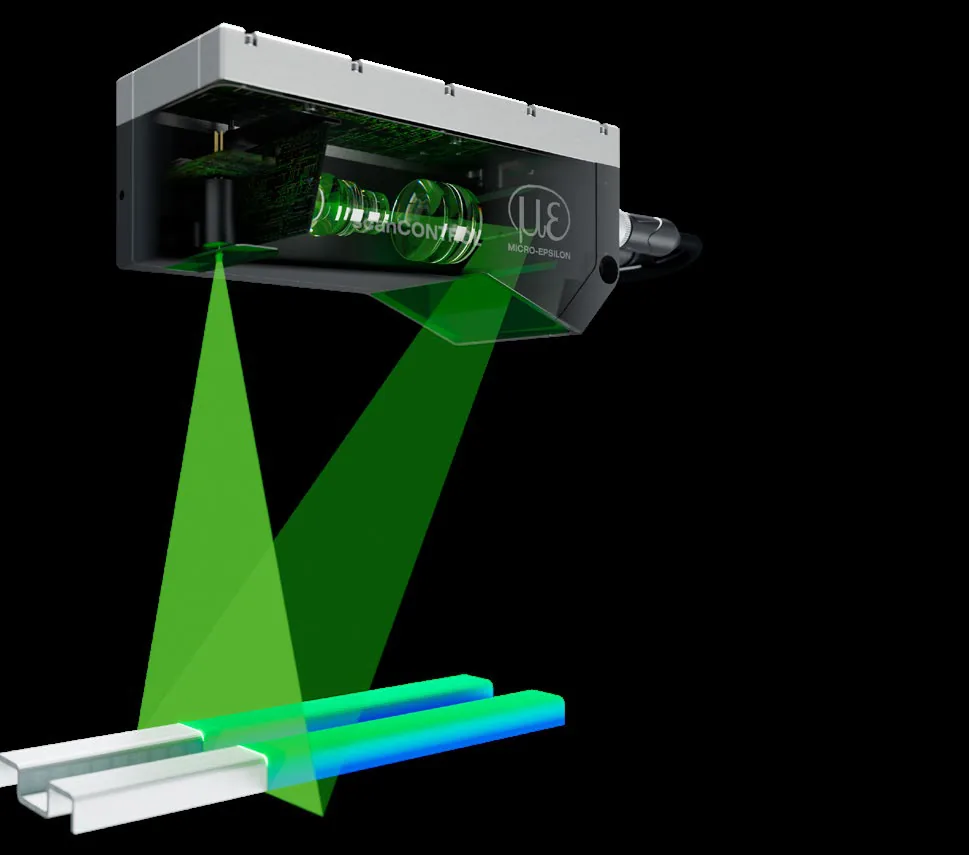

Green Laser Technology
A 520 nm green laser sits near the sensor's peak quantum efficiency, giving stable, low-noise signals even on shiny metal, PCBs, and organic surfaces — with shorter exposure times than red or blue laser scanners.
4K Sensor Matrix
Up to 4,224 points per profile and a point cloud resolution of 8,448 × 4,224 px. Extended dynamic range holds detail on strongly varying surfaces and under changing lighting.
SMART 3D In-Sensor
Complete 3D evaluation runs inside the sensor head — no external control module. Results go straight to your PLC over Industrial Ethernet, or export calibrated point clouds for your own software.
Where they're used
Adhesive Beads
Battery Cells
Weld Seams
PCB Inspection
Connector Pins
Stents

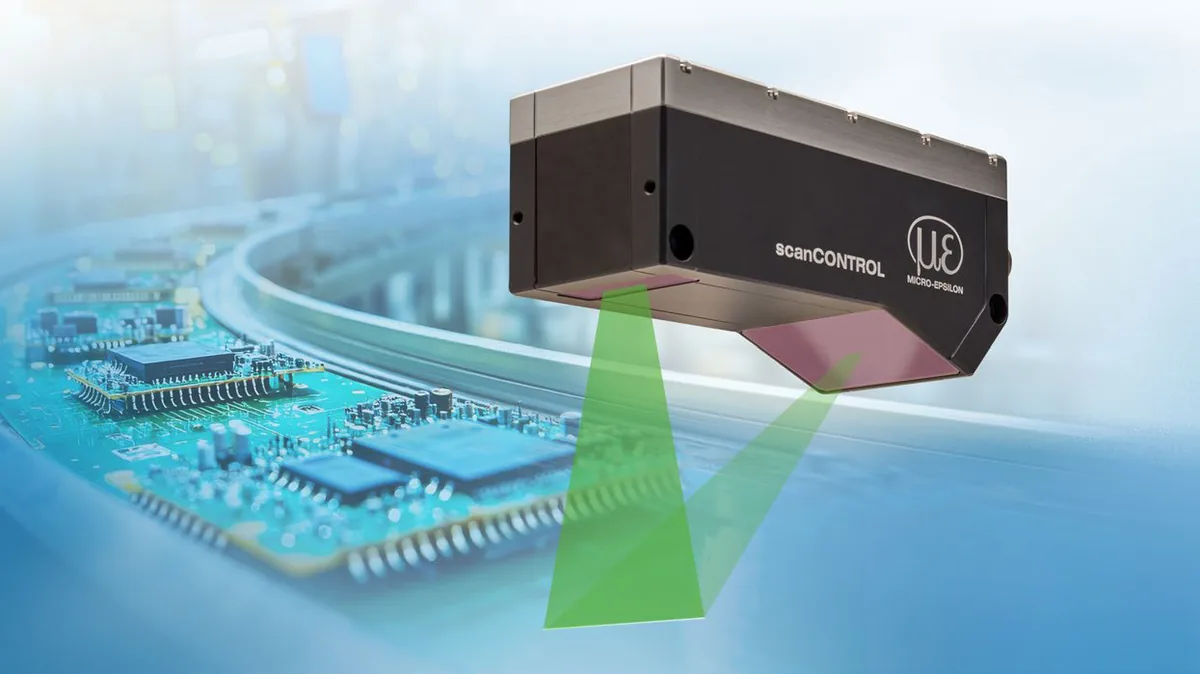

scanCONTROL 8500
The most compact 4K laser scanner with integrated 3D evaluation.
Configured to your application — we size the measuring range with you before quoting.
Request a QuoteIncludes the scanner, 3DInspect software, and free consultation to match the model to your part.
Download datasheet (PDF)Measuring Ranges
All three models share an identical housing — swap the measuring range without redesigning your fixture.
| Model | Distance (z) | Range height (z) | Field of view (x) | Resolution (x) | Laser aperture |
|---|---|---|---|---|---|
| LLT8500-25 | 74.5 – 90.5 mm | 16 mm | 24.2 – 25.8 mm | 6 µm | 24° |
| LLT8500-50 | 83 – 119 mm | 36 mm | 46.2 – 53 mm | 12 µm | 29° |
| LLT8500-100 | 110 – 205 mm | 95 mm | 84 – 115 mm | 24 µm | 42° |
Full Specifications
scanCONTROL 8200
The same green laser platform and speed, at 2,112 points per profile.
Configured to your application — we size the measuring range with you before quoting.
Request a QuoteIncludes the scanner, 3DInspect software, and free consultation to match the model to your part.
Download datasheet (PDF)Measuring Ranges
Same housing and mounting as the 8500 — you can move between series without re-tooling.
| Model | Distance (z) | Range height (z) | Field of view (x) | Resolution (x) | Laser aperture |
|---|---|---|---|---|---|
| LLT8200-25 | 74.5 – 90.5 mm | 16 mm | 24.2 – 25.8 mm | 12 µm | 24° |
| LLT8200-50 | 80 – 115 mm | 35 mm | 46.2 – 53 mm | 24 µm | 29° |
| LLT8200-100 | 110 – 205 mm | 95 mm | 84 – 115 mm | 48 µm | 42° |
Full Specifications
Applications
Real-time 3D scans that hold up during fast movement — where image processing alone falls short.

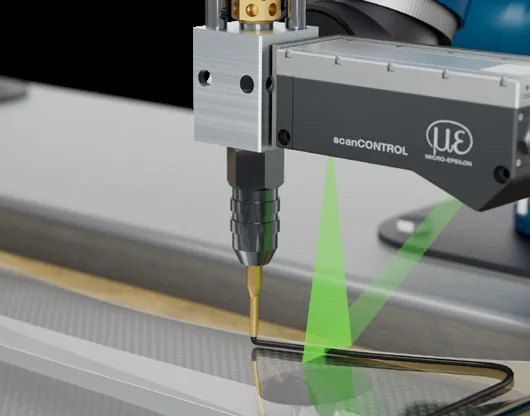

Adhesive bead inspection
Mounted fixed or on the robot, the scanner measures the height, width, and position of the bead as it's laid down — immediate quality control in automotive, packaging, and electronics.
Battery cell geometry

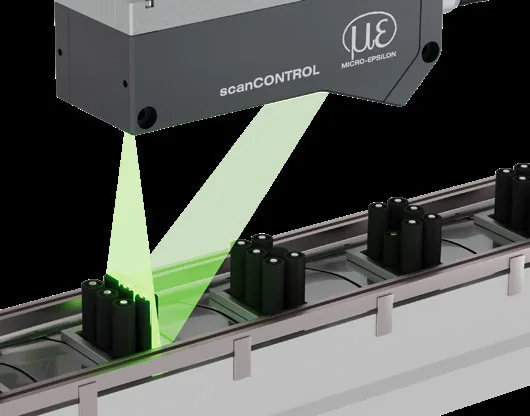

Captures cell geometry in high resolution and verifies alignment and installation height of every cylindrical cell, catching the tilt and height errors that cause short circuits or poor contact.

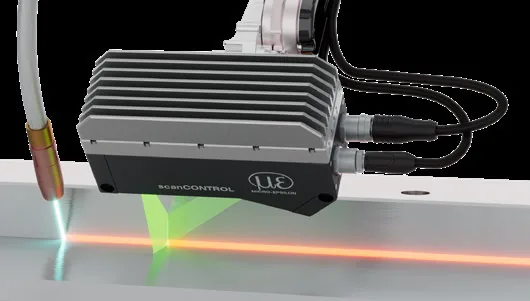

Weld seam inspection
Monitors the seam in real time and feeds the cross-sectional profile back to the process controller, so welds can be corrected in-process or flagged early.

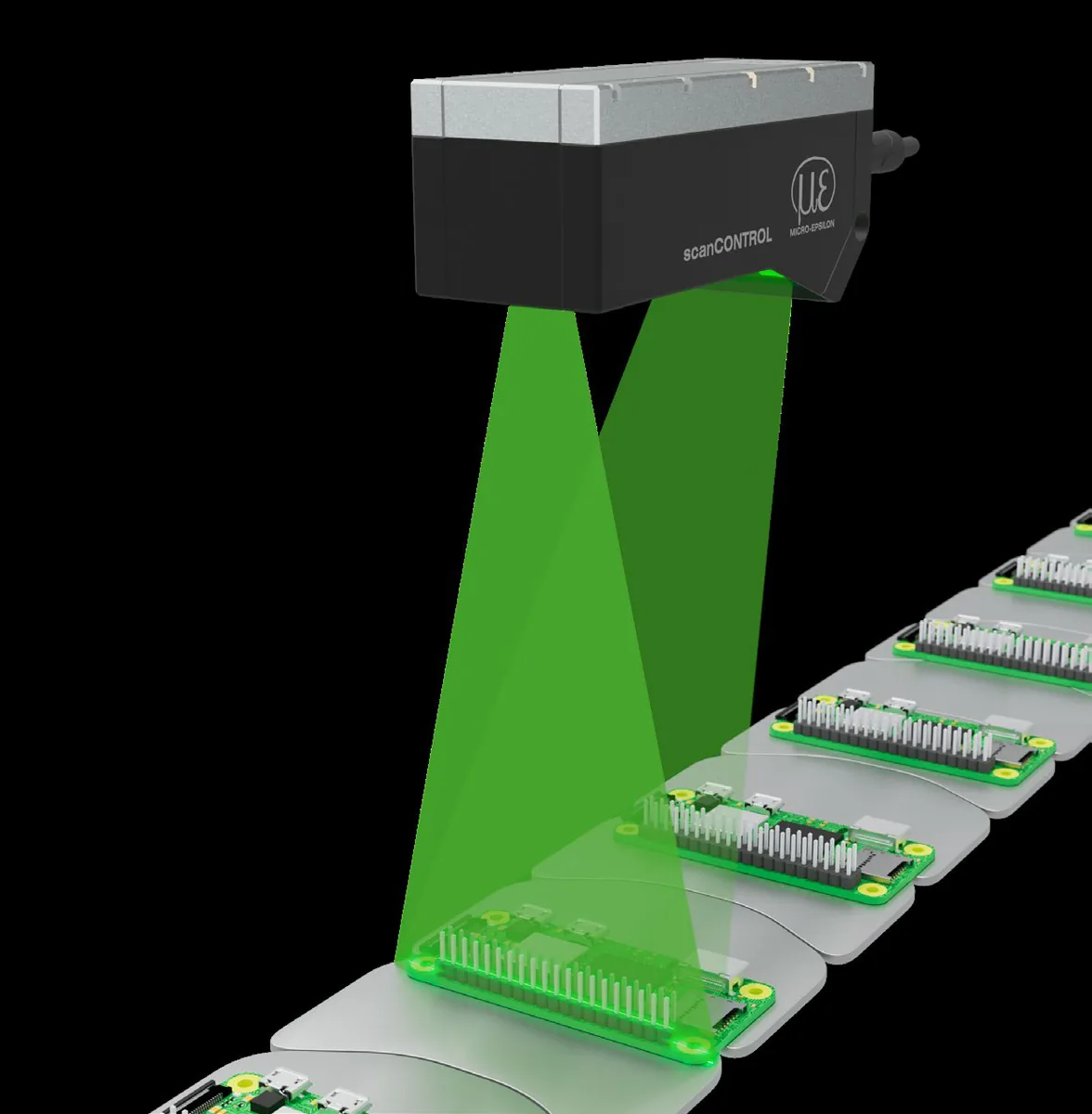

PCB presence & flatness
High z-resolution resolves the smallest height differences — presence, height profile, and coplanarity on very small structures, with results sent straight to the PLC.

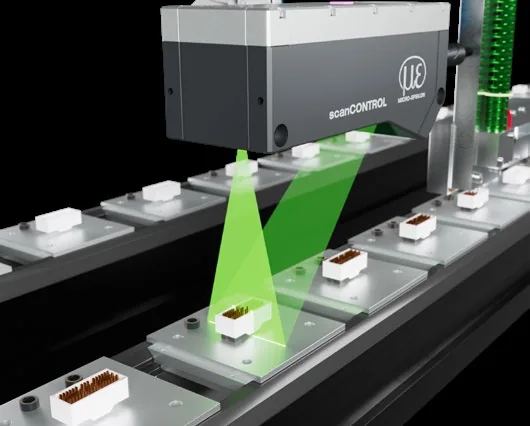

Connector pin inspection
Scans the whole pin row and checks number, position, and flatness — bent, missing, or misaligned pins are caught without interrupting material flow.

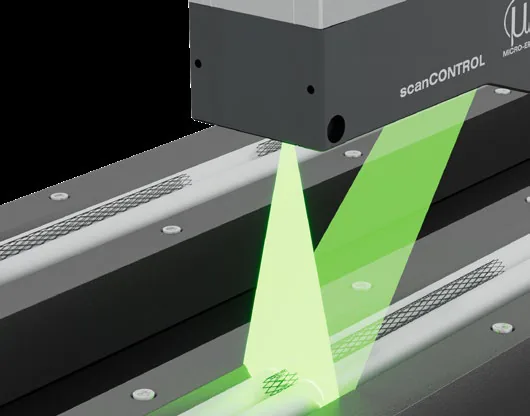

Stent mesh inspection
Inline, high-resolution inspection of the mesh structure detects defects, geometric deviations, and surface irregularities before parts reach downstream processes.

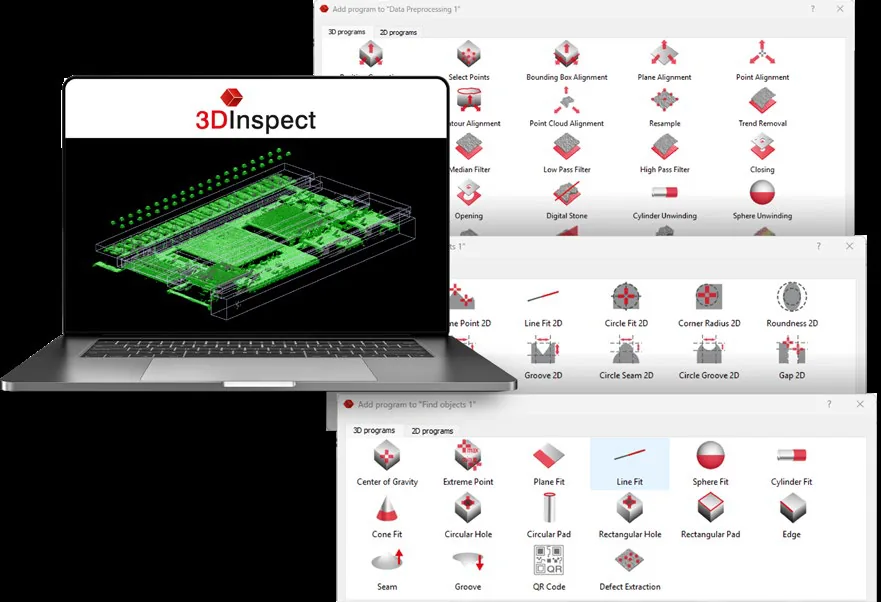

3DInspect Software
Included with every scanner.
Build the measurement, then let the scanner run it
Configure measuring programs for gap, angle, or height in 3DInspect, save them directly to the sensor, and the scanner runs standalone against your control system — no PC in the loop.
- More than 80 measuring programs, 2D and 3D
- Combine programs for complex measurement tasks
- Valid3D — real 3D point clouds, not 2.5D analysis
- Alignment and filtering of the point cloud
- Transfer programs to the scanner for SMART operation
- Or export calibrated profiles / point clouds to your own software
Compare
| Specification | scanCONTROL 8500 | scanCONTROL 8200 |
|---|---|---|
| Best For | Finest detail, SMART 3D in-sensor | High-speed profiling at lower cost |
| Points per Profile | 4,224 | 2,112 |
| Measuring Rate | up to 25 M points/sec | — |
| Profile Frequency | up to 10 kHz | up to 10 kHz |
| Resolution x (25 / 50 / 100) | 6 / 12 / 24 µm | 12 / 24 / 48 µm |
| Linearity (z) | 0.005 % | 0.005 % |
| Light Source | Green laser 520 nm | Green laser 520 nm |
| Indicators | 3× LEDs + 2× fieldbus | 3× LEDs |
| Protection | IP67 | IP67 |
| Weight | approx. 560 g | approx. 560 g |
Choose the 8500 if you need:
- The finest detail — 4,224 points per profile
- 3D evaluation inside the sensor, no external PC
- Direct results to a PLC over Industrial Ethernet
- The highest measuring rate in its class
Choose the 8200 if you need:
- The same 10 kHz speed and green laser at lower cost
- 2,112 points per profile is enough for your feature size
- Identical housing and mounting to the 8500
- Fieldbus output to your existing control system
Accessories & Options
Multifunction cable
PCR8500-x/OE-RJ45 · LLT8200 / LLT8500
Power, digital I/O, sync, and Industrial Ethernet in one cable. Rated for drag chains and robots. Lengths: 2, 5, 10, 15, 25, 35 m.
Ethernet connection cable
SCR8500X-x · LLT8200 / LLT8500
Parameter setting plus value and profile transmission. Suitable for drag chains and robots. Lengths: 2, 5, 10, 15, 25, 35 m.
Cooling units
LLT8x00
Passive heat sink, active heat sink with fan, or a thermal connection to your own cooling — for steel, welding, and other hot environments. Active cooling reduces the rating to IP40.
Not sure which measuring range fits your part?
Send us the part geometry and the feature you need to measure. We'll size the scanner, tell you what it will and won't resolve, and quote it — free consultation, no hidden fees.
Talk to an Engineer
